Item specifics
  • Model Number: 1
  • USB Type: Standard
  • Brand Name: SICOTOOL
  • Bundle: Bundle 1
  • Cable Length: 1
  • Certified: 1
  • Package: No
  • Use: none
  • Car Maker: Chevrolet, Daihatsu, Ford, Land Rover, Maruti, Peugeot, Romeo, Rover
Product Description

New VAG PRO CAN BUS+UDS+K-line S.W Version 5.5.1 better than VCDS and ODIS

If you need other VAG Cable, ( 15.7.0   15.7.1  16.8.0  16.8.3 )
pls feel free to contact me. Thanks.

Whatsapp:+008613827420867

Nouveau VAG  PRO CAN BUS+UDS+K-line S.W Version 5.5.1 Livraison gratuite

New in version 5.5.1

Support for new addresses entered in the MLB-Evo platform
Update database-ODX (support for all models 2015)


Language: English, Danish,German,Hrvatski,Italian, Dutch,Polish,Russian, Spanish

vag can pro 3

Systems required: Windows 7 and Windows XP , NOT WORK WITH WIN10

Note: It can not use with VCDS software.

It is  not ORIGINAL   product, some fuction can not do . pls understand.
After place a order, you can leave us your email address, we can send you install video. If you have any problem , contact me first , dont give us negative feedback or open dispute, we have technician , can help you solve the problem .Thanks


VAG  Pro can completely replaced VAS 5054A ODIS Bluetooth. Is better that VCDS in all aspects. It can do some things that VCDS can’t, OCF will make your life much easier, it takes time to understand how this software works, it still need some fixes, it sometimes gives you headache but it’s definitely worth to buy as second software for VAG after VCDS.  It is very good tool for VAG and DGS flash.

Main features of VAG  PRO:

* Unique features OCF service procedures (One-Click-Function);
* inexpensive flasher for VAG;
* inexpensive flasher with support UDS controllers;
* ESP MK60EC1 decision coding blocks;
* a tool for a complete diagnosis MQB platform (Golf VII, Octavia III) Support to 01.2013;
* ZDC-loading containers in the electronic components;
* Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB);
* Coding controllers for PR-codes;
* "Login finder" - allows you to scan and logins in the CAN controllers UDS;
* Support for the new Polo in 2014 Facelift;
* Support for the new Passat B8;
* Full support of Audi TT-3 on the platform of the IBC;
* Full support for Skoda Fabia III

Major changes in the PR encoder:

* Now it is possible to keep PR-codes of a file
* PR-self-sustaining encoder may select codes known PR-analysis of current data stored in the ECU
* You can compare the data stored in the ECU against the calculated data, choose what you want to download.
* OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved - Thanks Ciamardo / vcp-forum.de
* The new team in the Scripter: GetCardSerial, returns the current smart card number. You can use it to prepare a script that will run only on these smartcards.
* Enhanced TXT-coding, coding calculation is now faster APDUs.
* Updated data base DTC- Fixed problems with parameterization 7N0 cameras
* Fixed problems with parameterization 5M0 ...... F AFS modules
* OCF new section called "Apps", which is: Download the parameter data, coding for PR-code, programmer Wabco, BCM, and so forth programmer..
* The new procedure OCF "FlashFile Dumper" - can extract content from Flash files (* .SGO, * .FRF, * .ODX) in a binary dump. Note: The source data format is not changed, * so that if a Flash file kriptovat and compressed, the binary file will be the same.
* Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) - not all ECU were available through the Gateway.
* Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform)
* New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.04 / 0B.04) to support new protocols (TCP-IP) used on the MLB-EVO platform
* Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform
* OCF Disable Start-Stop system is now supported PQ26 platform (Polo 6C, Fabia III, etc.)
* Reduced time delays during the loading of large data blocks in the non-flash modes.
This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans VAG

Supported cars:

1. Audi
A2 2009-
A3 8P 2003-
A3 - platform MQB-
A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-
A4 model 8K wariant B8 (UDS + TP2.0) 2008-
A5 model 8K (UDS) 2007-
A6 model 4F 2004-
A8 model 4E 2003-
Q3 (UDS) 2010-
Q5 (UDS) 2008-
Q7 (TP2.0 + UDS) 2006-
S5 model 8K
(R)S6 model 4F
R8 (UDS)
TT model 8J 2007-

2. Mercedes
Sprinter (VW Crafter) - - Only the engine and immobilizer

3. Seat
Altea
Leon MQB 2013-
Leon model 1P 2005-
Toledo model 5P 2004-
Exeo 2008- (Engine, transmission, airbags, ABS, park)

4. Skoda
octavia model 1Z 2004 -
octavia platform MQB -
superb II B6 2008-
fabia model 5J 2007-
yeti 2009-

5. Volkswagen
Crafter (immobilizer, engine)
Caddy model 2K 2005-
Eos
Golf V model 1K
Golf VI model 5K
Golf VII platform MQB
Golf Plus
Jetta II model 1K
Transporter / Multivan (Only after the CAN-BUS drive for storing data)
Multivan/Transporter GP model 7E (UDS) 2009-
Passat B6 model 3C 2005-
Passat CC-
Phaeton GP 2007-
Polo model 6R 2009-
Polo FL MQB 2014-
Scirocco III-
Touran-
Tiguan-
Touareg GP 2007-
Touareg NF 2010

K-line ( KWP1281, TP/KWP2000)
- VW Golf III, IV
- VW Passat 3B
- VW Bora
- VW Transporter T5
- VW New Beetle
- VW Polo II,III,IV
- Skoda Octavia I
- Skoda Fabia i i II
- Seat Leon I
- Seat Toledo II
- Seat Alhambra
- Seat Ibiza II, III, IV
- Audi A2,A3,A4,A6 K-Line

Notes for Audi A4

1. Option A4 8E B6 model
This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.
2 .Model A4 8E, B7 option
This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the so-called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.
In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.

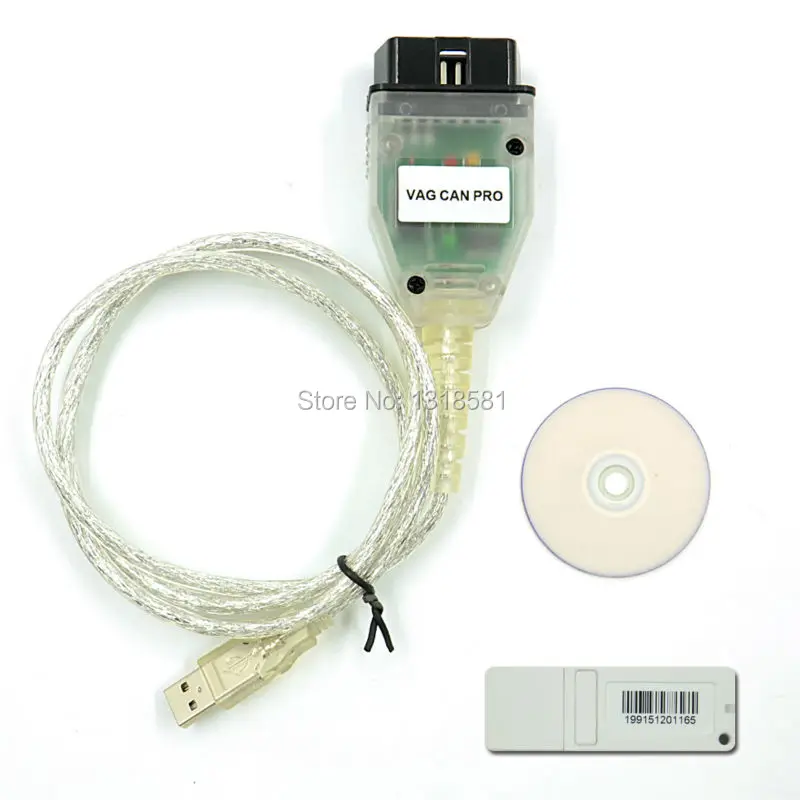

Package including:

1pc x VAG CAN PRO
1pc x Encryption dog
1pc x CD

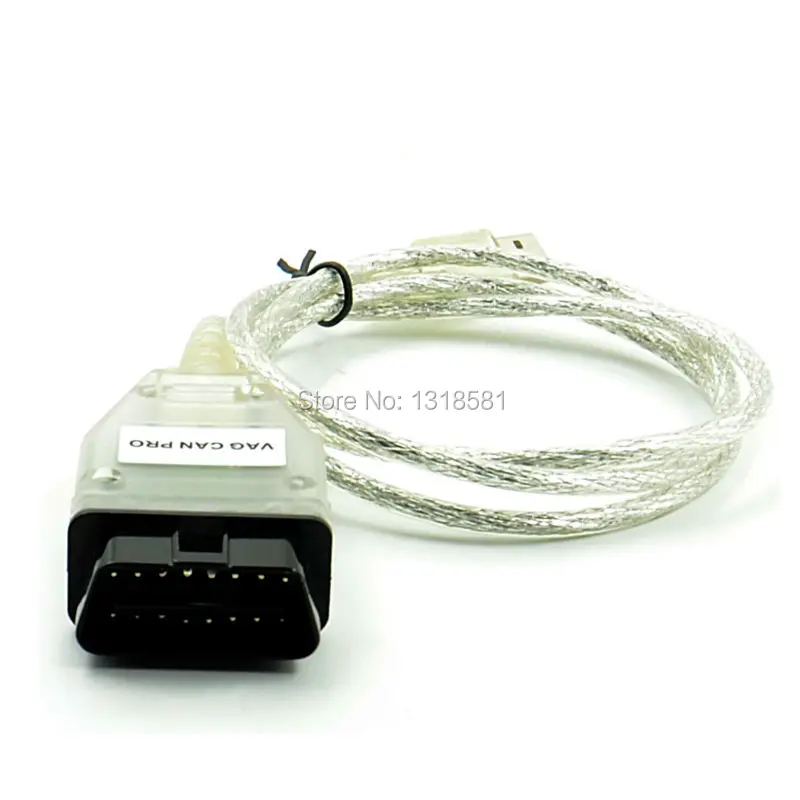

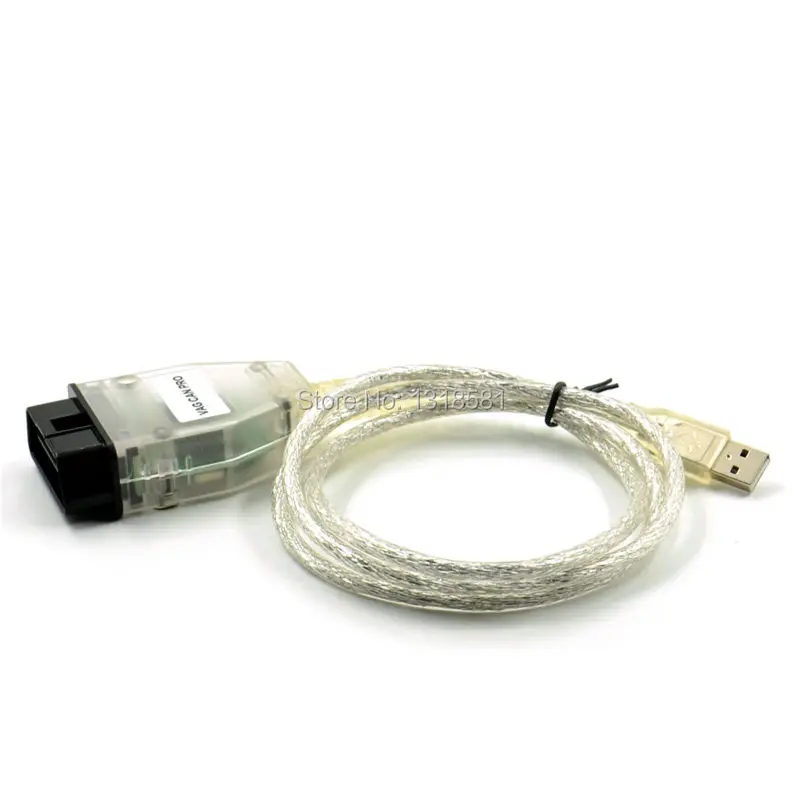

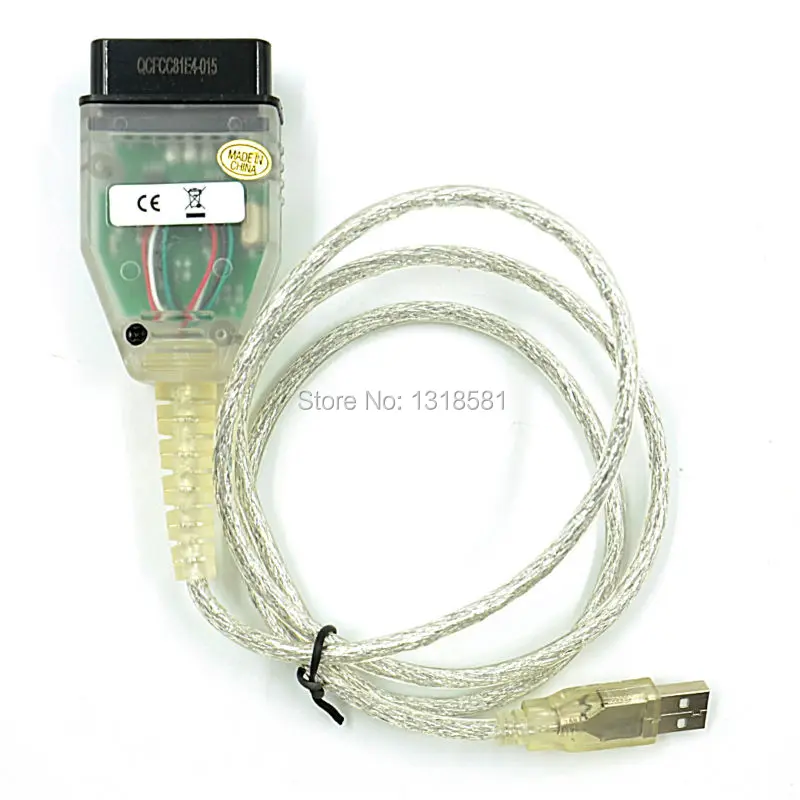

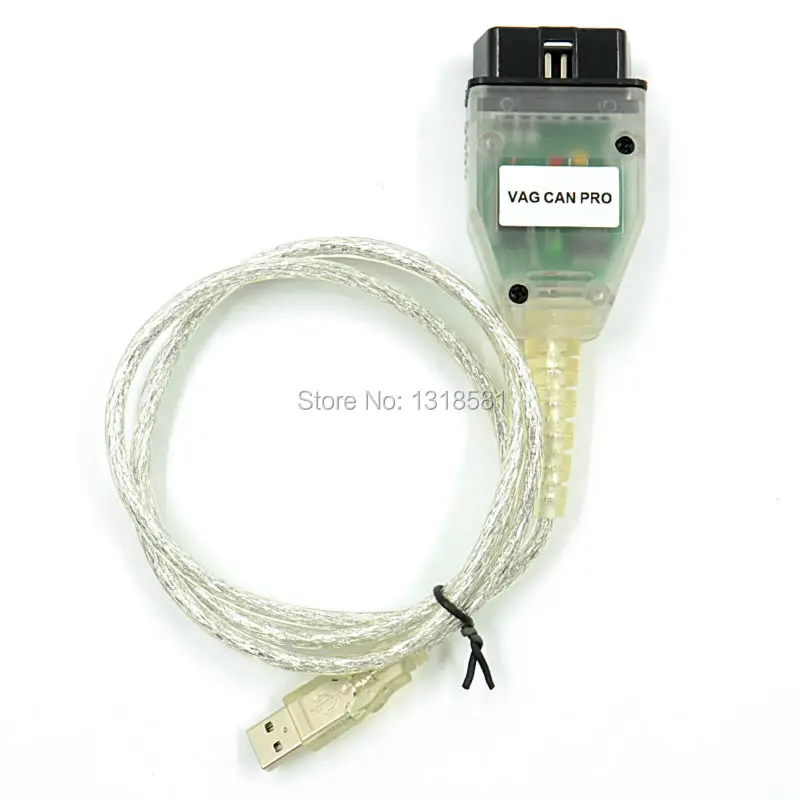

vag can pro 1
vag can pro 2


VAG CAN PRO (5) VAG CAN PRO (4) VAG CAN PRO (3) VAG CAN PRO (2) VAG CAN PRO (1)

 4 2  5 3 6 7
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 20cm x 20cm x 10cm (7.87in x 7.87in x 3.94in)
